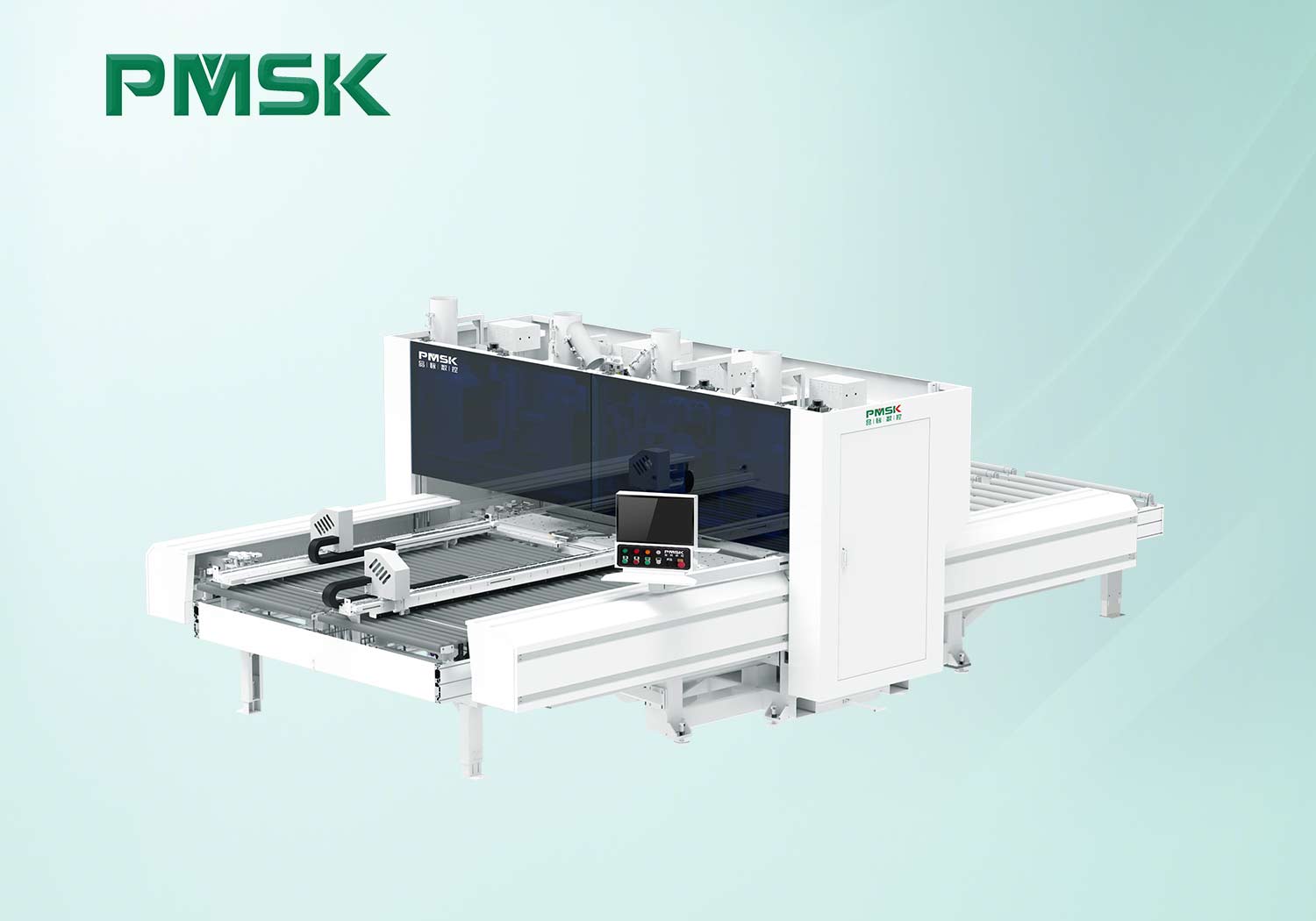

With the whole-house customized furniture market’s extreme pursuit of equipment function, precision and efficiency, cost reduction and efficiency has become the core demand of furniture manufacturers. With the advantages of high precision, high efficiency and high adaptability, CNC six-sided drilling machine with double workstation has become a good choice for furniture manufacturing.

Integrated heavy-duty bed

Machine bed by annealing, natural aging, five-sided gantry machining centers in a single molding, high rigidity, strong vibration damping to ensure the machining accuracy and quality of the finished product, at the same time, through the long life, low maintenance reduces the user’s long-term use of the cost of the long-term stability of the equipment to provide a strong guarantee for the operation of the long-term stability of the equipment.

• Multiple processing techniques

CNC six-sided drilling machine with double workstation can complete a variety of complex processes such as six-sided drilling, upper and lower slots, light wire slots, heaven and earth hinges, straighteners, lamino and so on.

• Dual workstation independent operation

The two stations can perform different operations at the same time, without interfering with each other, which not only improves the unit time production capacity of the equipment, but also solves the low processing efficiency of customized furniture production, large loss of equipment downtime, high labor costs and other common points through the characteristics of parallel operation, flexible adaptation, risk dispersion and so on.

PT6.2 Double Workbench Six Line Boring Machines

• ModelPT6.2
• Spindle power6KW/3.5KW/18000RPM
• Configuration Single drill / Double drill
• Upper drill pack12 vertical +8 horizontal
• Bottom drill pack9 vertical
• Panel length250~2800mm
• Panel width55~1200mm
• Panel thickness50mm
• Overall size6000×5100×2600mm

WhatsApp

Get a Quotation

Upper drilling unit

Furniture production special drilling system adopts scientific layout design, accurately covering all kinds of hole processing needs, compatible with a variety of plate materials, greatly improving drilling efficiency and processing accuracy.

• Upper automatic tool changer spindle and magazine

The upper machining unit is equipped with a 6KW high-power automatic tool changer spindle, which ensures strong power support during machining and is suitable for a wide range of materials and machining requirements. The automatic tool changer tool magazine supports rapid switching of multi-specification tools, which meets the demand for diversified tools for complex machining tasks and significantly improves machining efficiency and process flexibility.

• Automatic tool setting instrument

CNC six-sided drilling machine is equipped with automatic tool setting instrument, which automatically measures the length of the tool, avoiding the error generated by manual measurement, realizing higher precision control and ensuring product quality.

• Lower processing unit

The lower drilling unit has 2 drilling packages with 9 vertical drills each, equipped with double spindles.

• System and software interfacing

CNC six-sided drilling machine with professional operating software, integrating program management, work-piece editing, data statistics, fault detection, applying intelligent AI algorithm to plan the optimal machining path. Applicable to a variety of order splitting software, can be adapted to xml, dxf, ban, bpp and other formats.

• Pneumatic feed gripper

The enlarged U-shaped pneumatic gripper can quickly locate and support the plate with uniform holding force to ensure the stability of the plate during high-speed drilling and cutting and to improve the production efficiency.

• Work–piece width inspection and calibration

The work-piece width detection and calibration function not only solves the hole position deviation caused by width errors in traditional machining, but also solves the hole position deviation caused by different positioning benchmarks in dual stations. Therefore, it has become a key technology for furniture factories to achieve high-precision delivery, low-cost production, and flexible manufacturing.

Double-station six side drilling machine

---

By virtue of its dual-station CNC six-sided drilling mode, the production efficiency of the traditional single-station equipment has been greatly improved, and it can also better meet the core needs of the customized furniture industry for small batch, multi-batch, and customization. At the same time, as the core equipment of intelligent drilling workstation, CNC six-sided drilling machine with double workstation can seamlessly connect the front process of edge sealing and the back process of intelligent sorting through the three major capabilities of data integration, equipment synergy, and flexible adaptation, which can truly realize the whole process of intelligent closed-loop, and further promote the furniture production line to Industry 4.0.
