At present, panel furniture production increasingly prioritizes high efficiency and automation. The dual-station CNC six-sided drilling machine, with its outstanding performance, precisely aligns with this development trend.

The PMSK dual-station CNC six-sided drilling machine is primarily used for drilling and slotting in panel furniture production. It not only accommodates common processing techniques like two-in-one, three-in-one, and laminate applications but also enables panel profiling and irregular cutting. This machine simultaneously processes six-sided hole positions and front/back slotting on two panels at once, combining efficiency with automation. It is particularly well-suited for high-end custom furniture manufacturing.

Dual-station independent operation

Two stations operate independently without interference, enabling simultaneous processing of panels to effectively boost production efficiency.

• Automatic feeding and discharge

Automatic feeding station pre-positioning device enables advance material positioning and automatically removes finished parts after processing, reducing waiting time and saving labor and time costs.

Utilizing an advanced servo control system ensures precise movement and positioning of the sheet material during feeding and unloading, enhancing machining accuracy and stability.

• Processing unit

Upper drill bag: 12 vertical + 8 horizontal, automatic tool changer spindle, minimum spacing between double drills 64mm, synchronized high-efficiency operation.

Lower drill bag: 9 vertical, with significantly improved efficiency.

• Spindle and tool magazine

Power configuration: High-efficiency dual-spindle setup—Upper spindle: 6kW with automatic tool changer; Lower spindle: 3.5kW. Ensures robust power support throughout machining processes, suitable for diverse materials and processing requirements.

Automatic tool changer: The upper machining unit is equipped with an automatic tool magazine capable of storing multiple specifications and types of cutting tools, enabling rapid switching to meet the diverse tooling requirements of various machining tasks.

• Drilling tool setter

Eliminate manual tool setting errors by intelligently detecting tool length, thereby enhancing machining precision.e low processing efficiency of customized furniture production, large loss of equipment downtime, high labor costs and other common points through the characteristics of parallel operation, flexible adaptation, risk dispersion and so on.

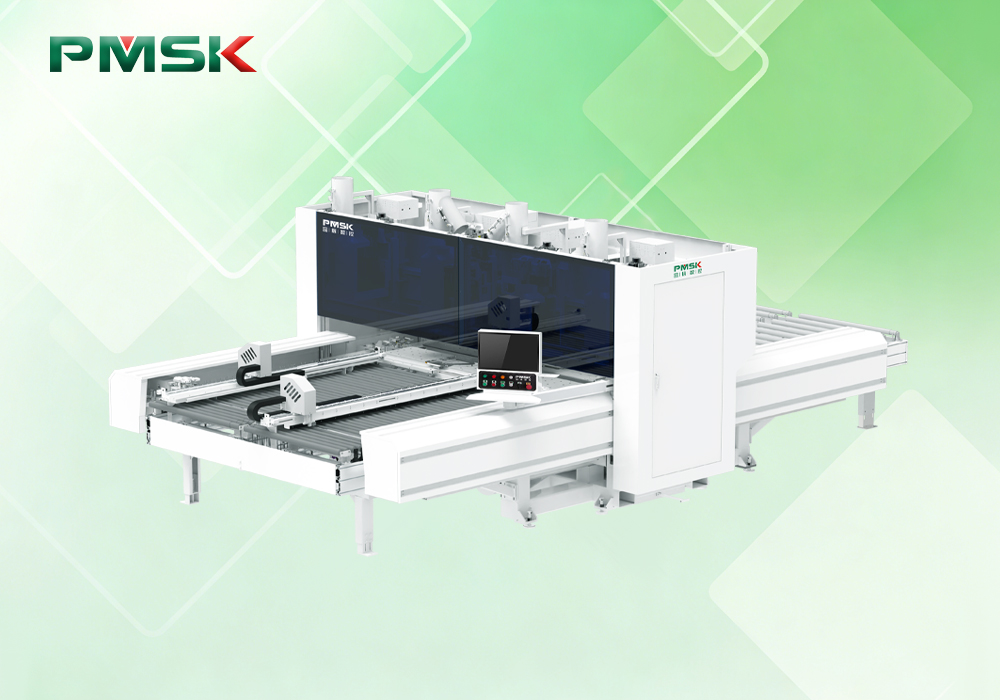

PT6.2 Double Workbench Six Line Boring Machines

• ModelPT6.2
• Spindle power6KW/3.5KW/18000RPM
• Configuration Single drill / Double drill
• Upper drill pack12 vertical +8 horizontal
• Bottom drill pack9 vertical
• Panel length250~2800mm
• Panel width55~1200mm
• Panel thickness50mm
• Overall size6000×5100×2600mm

WhatsApp

Get a Quotation

Enhance production efficiency: Automated tool changer combined with intelligent algorithms achieves higher output per worker and reduces per-unit costs.

Ensuring consistent quality: A heavy-duty frame and precision control system guarantee uniform machining results.

Expanding business scope: Extensive process adaptability enables us to handle diverse orders, opening new avenues for profit growth.

Lowering the investment threshold: Offering more comprehensive allocations at better costs, with attractive returns on investment.

In summary, the dual-station CNC six-sided drilling machine is a product of current market development, capable of fully meeting diverse processing demands and delivering additional profit growth opportunities for panel furniture manufacturers. Simultaneously, it reduces costs, enhances efficiency, boosts core market competitiveness, and enables highly efficient, flexible production.igh-precision delivery, low-cost production, and flexible manufacturing.

Double-station six side drilling machine

---
