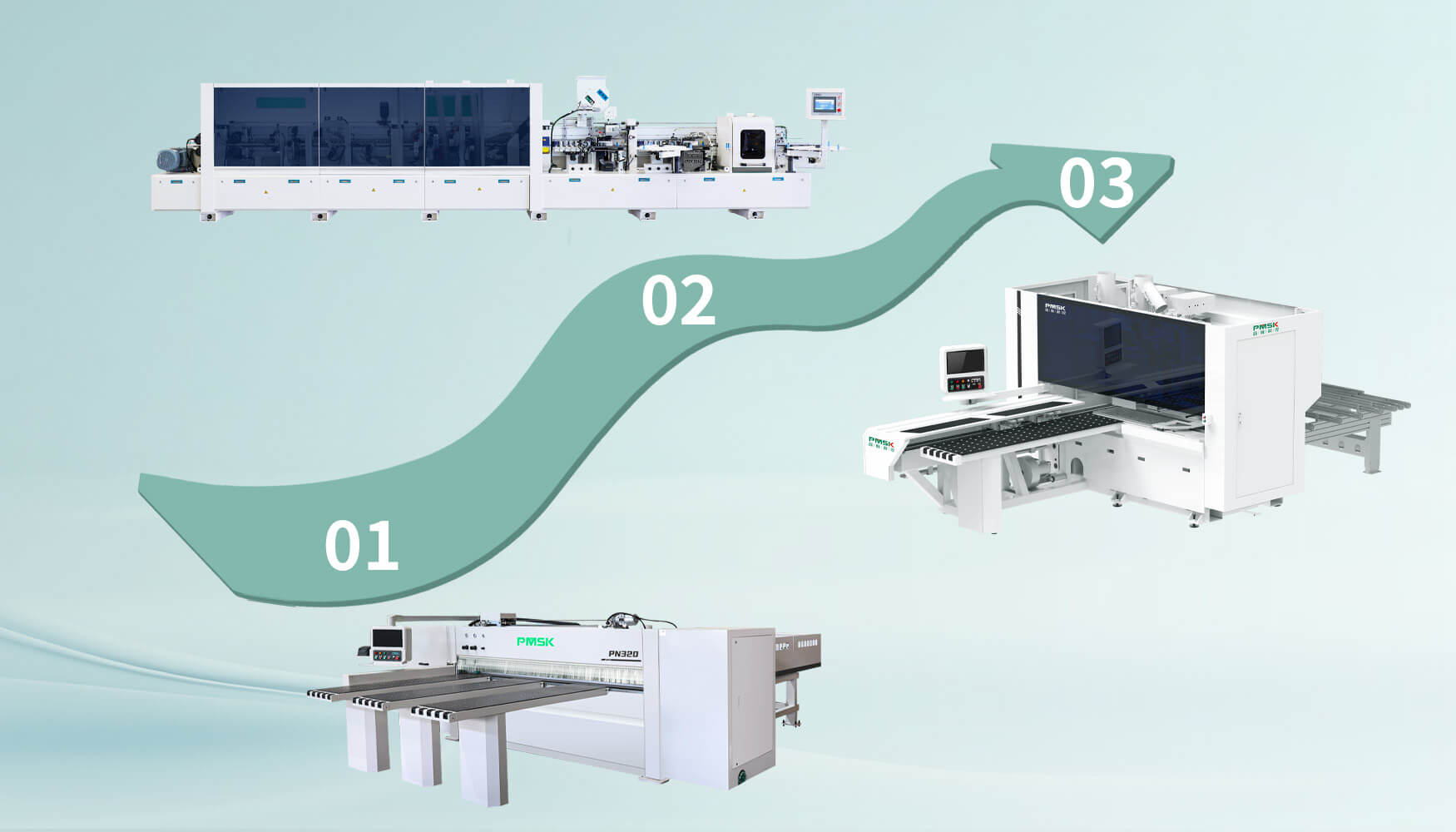

Introduction
It is suitable for furniture factories with high production volume, and most of them are engineering orders. The average output of batch panel furniture production line can reach about 300~500 panels in 8 hours.
50% equipment cost
50% labour cost
100% double efficiency

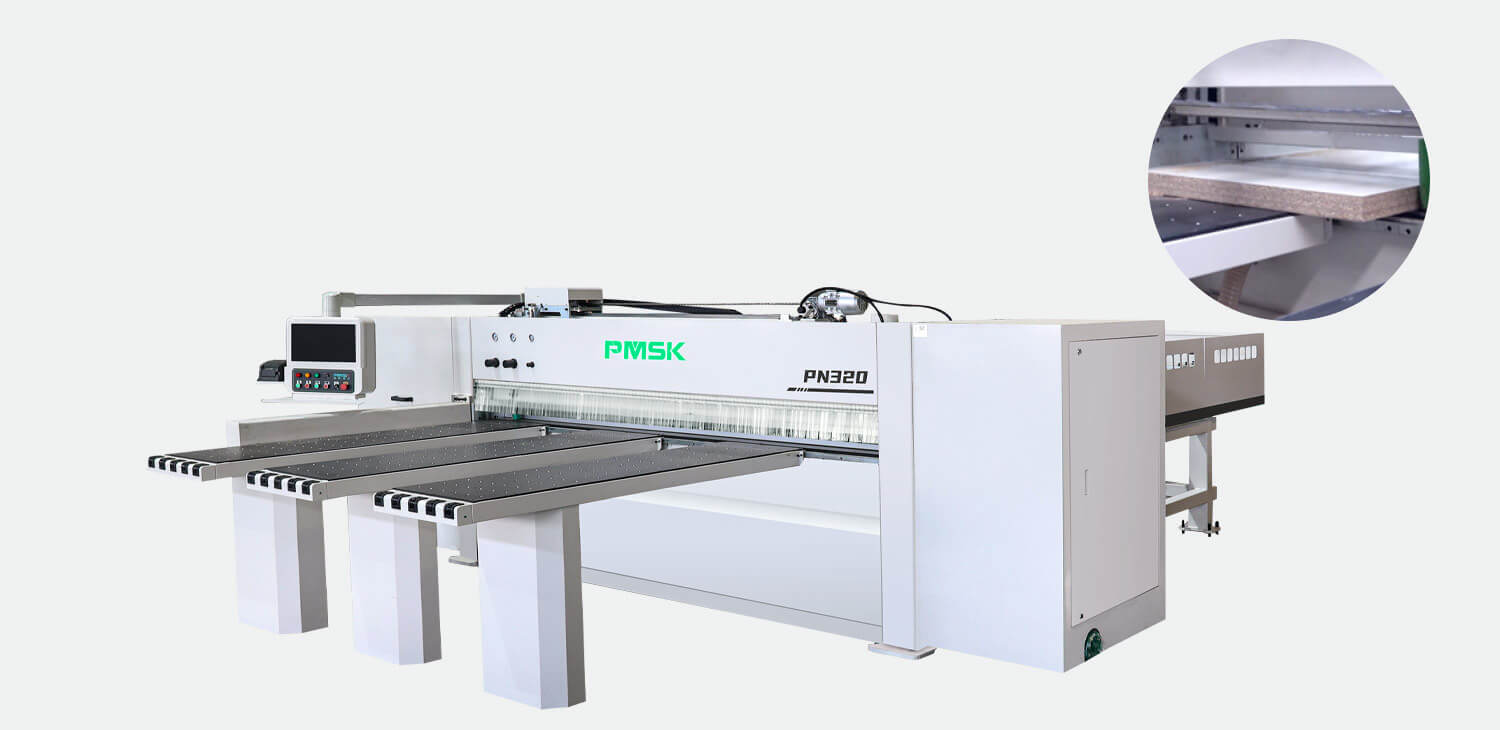

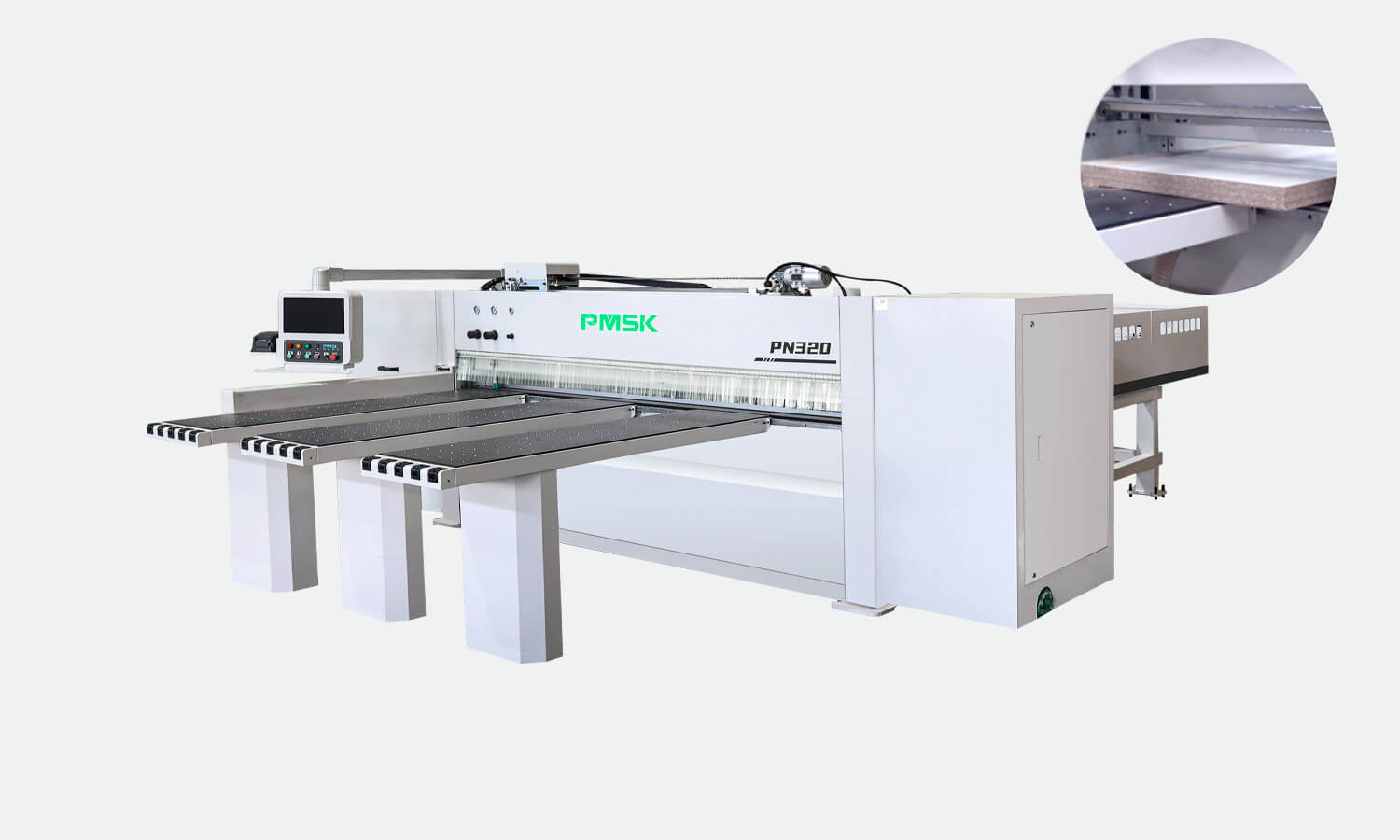

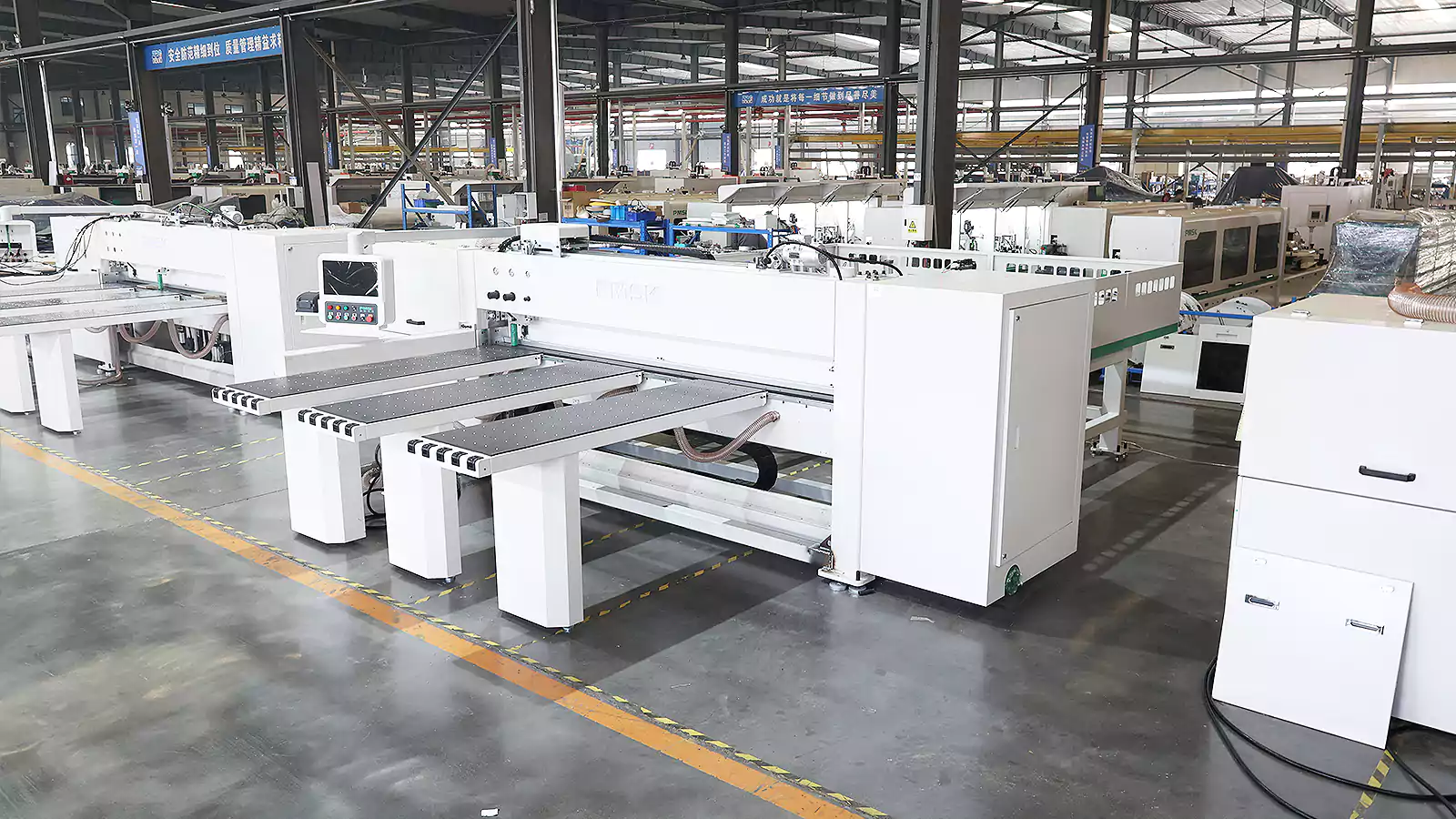

PN280/320/380/430 Cnc Panel Saw
- ModelPN280/320/380/430
- Maximum speed110m/min
- Main saw 15Kw
- Auxiliary saw2.2Kw
- Main/Auxiliary saw diameter400mm/200mm
- Air pressure≥ 6.5Kgf/cm
- Total power28KW
- Dimension6600×7000×2000

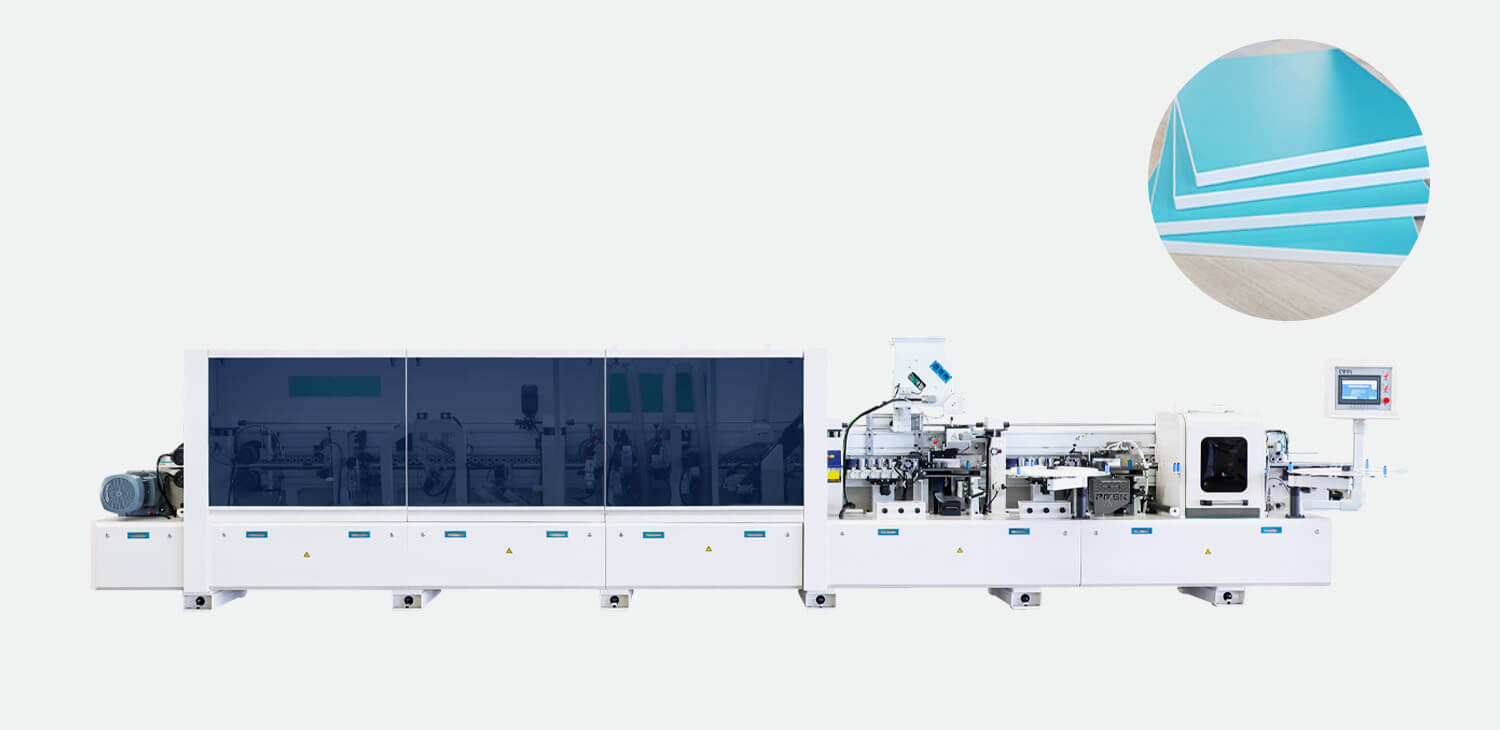

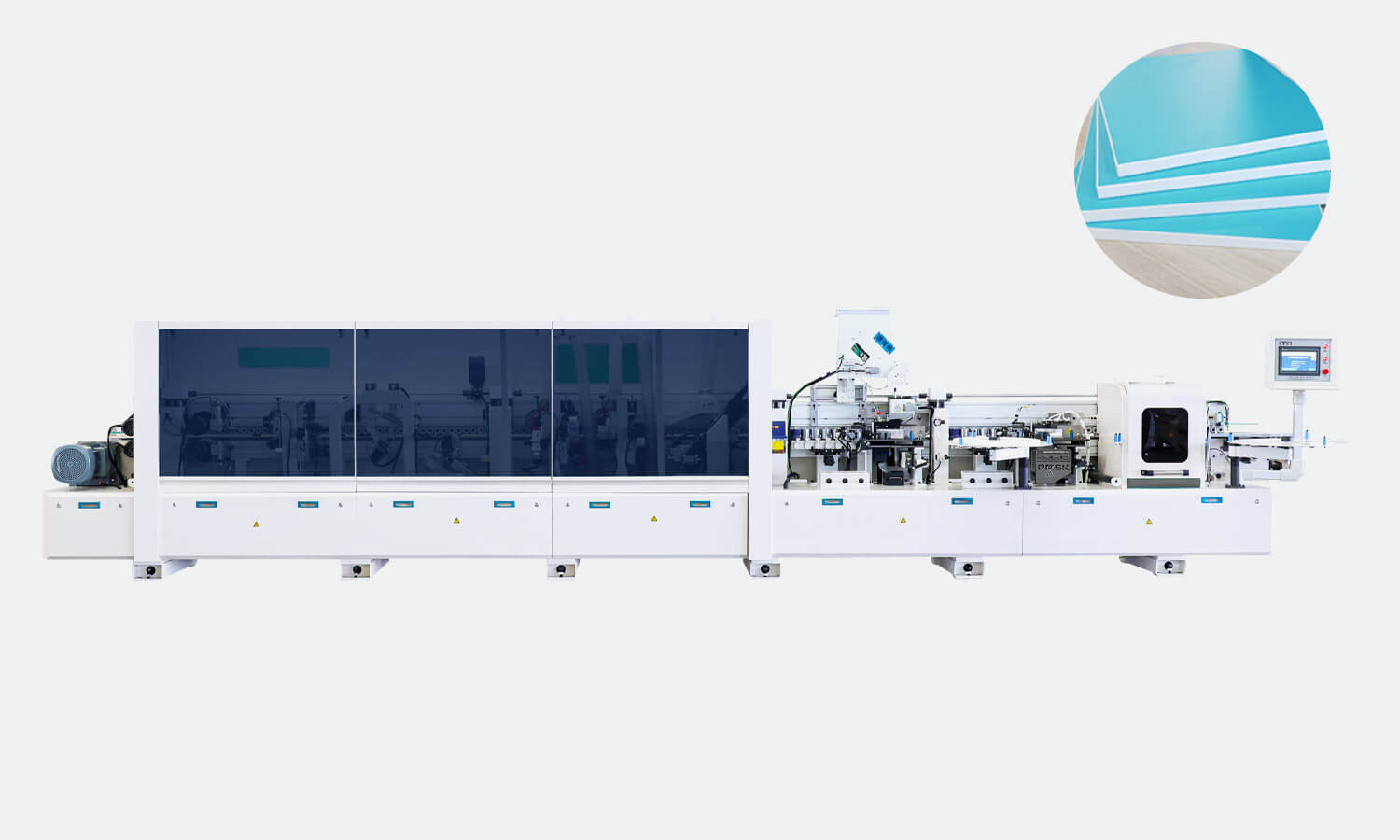

PE-668J-2S Upper Lower Glue Pot Edge Bander
Machine Two
- ModelPE-668J-2S
- Edge tape thickness0.4-3mm
- Edge tape width12-65mm
- Panel thickness10-60mm
- Feeding speed0-23m/min
- Air pressure0.7Mpa
- Total power24kw
- Dimension9400×1050×1750
PT6.5 Cnc Side Drilling Machine
- ModelPT6.5
- Spindle power6KW/18000RPM
- ConfigurationATC
- Upper drill pack12 vertical +8 horizontal
- Bottom drill pack9 vertical
- Panel length180~2800mm
- Panel width35~1200mm
- Panel thickness50mm
- Overall size6000×3400×2600
