pmskmachineNew Arrivals Furniture Making Machine
Introduction

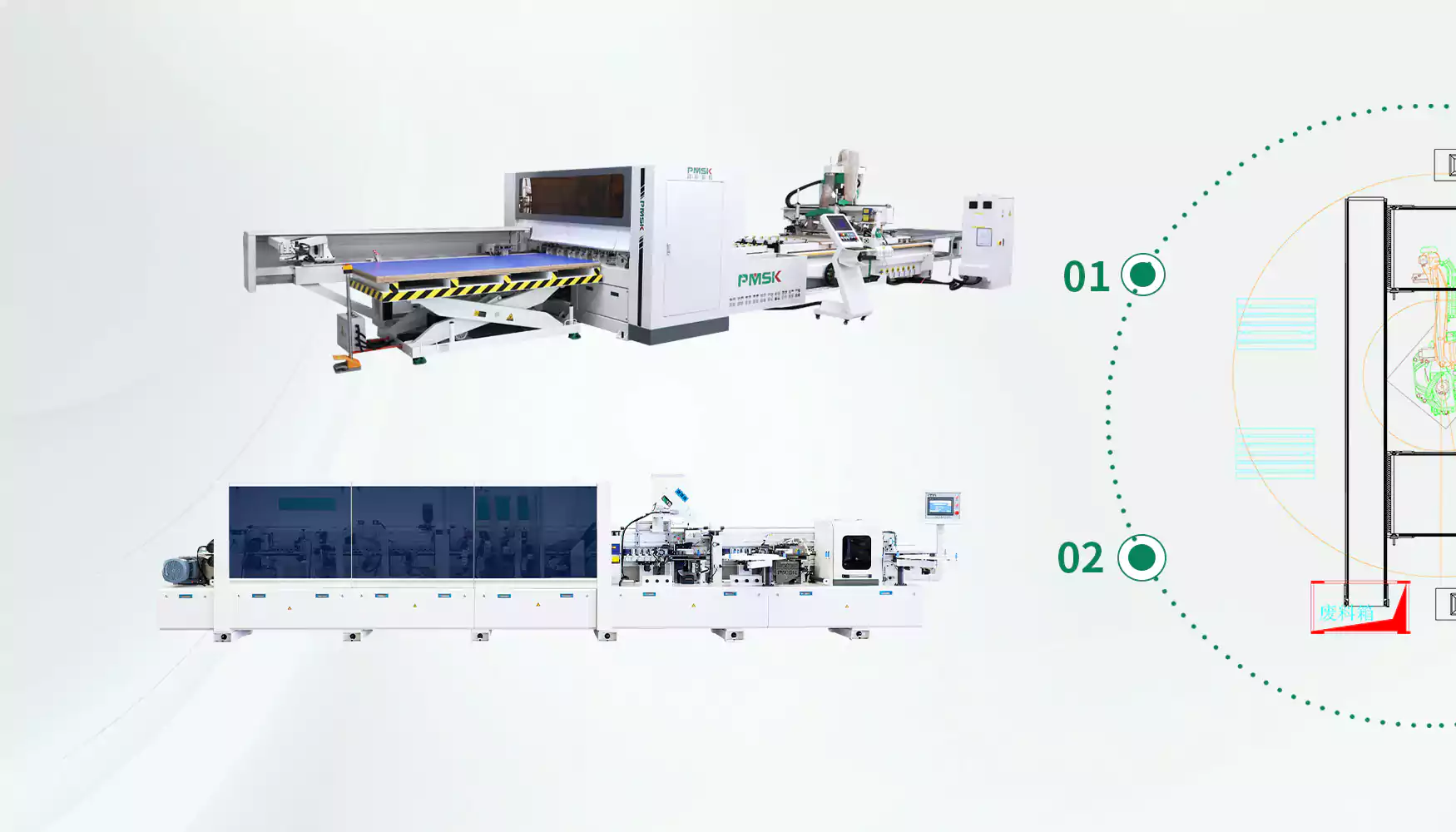

Only two workers are needed to complete the whole production line, including labeling, drilling, grooving, cutting, edge banding, etc. The output can reach 140 to 160 sheets in 8 hours.
50% equipment cost
50% labour cost
100% double efficiency

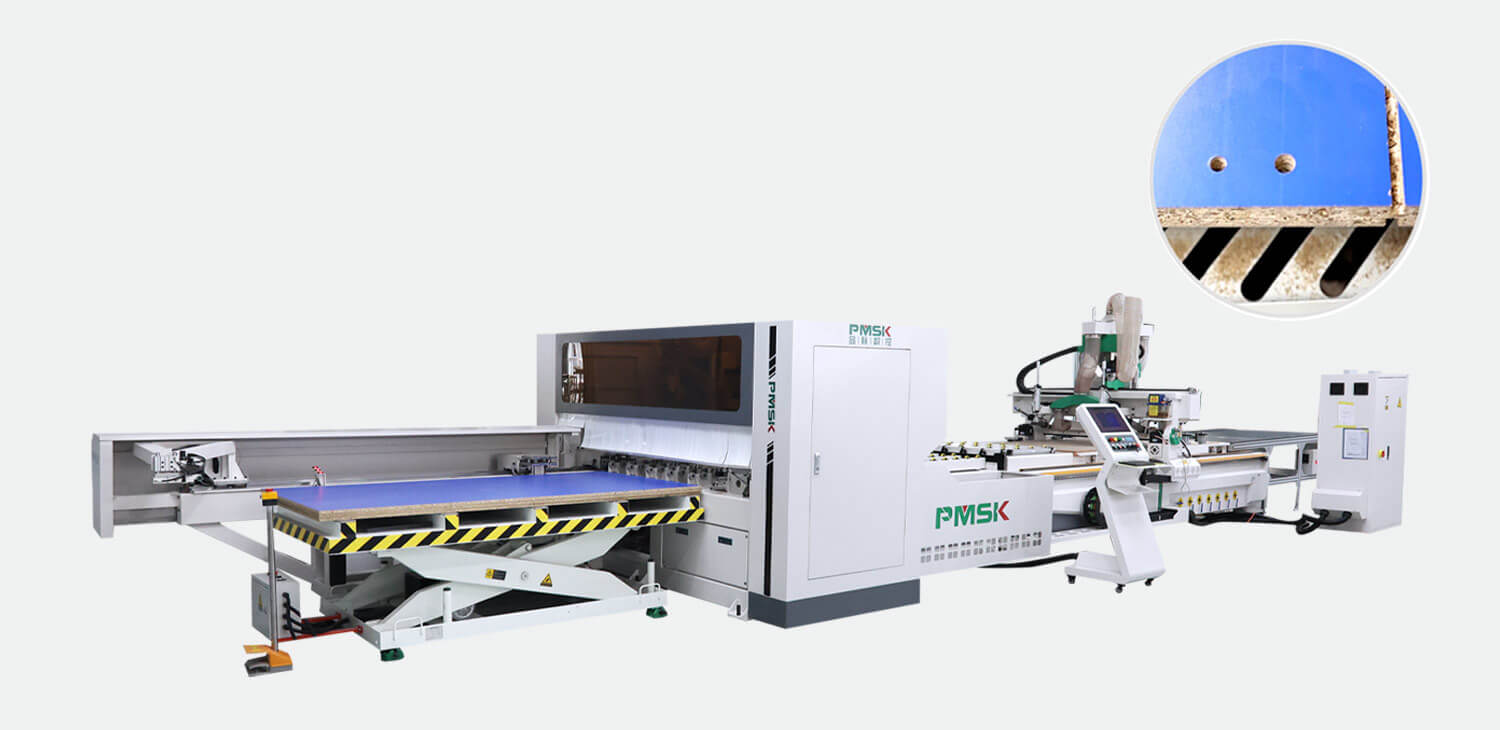

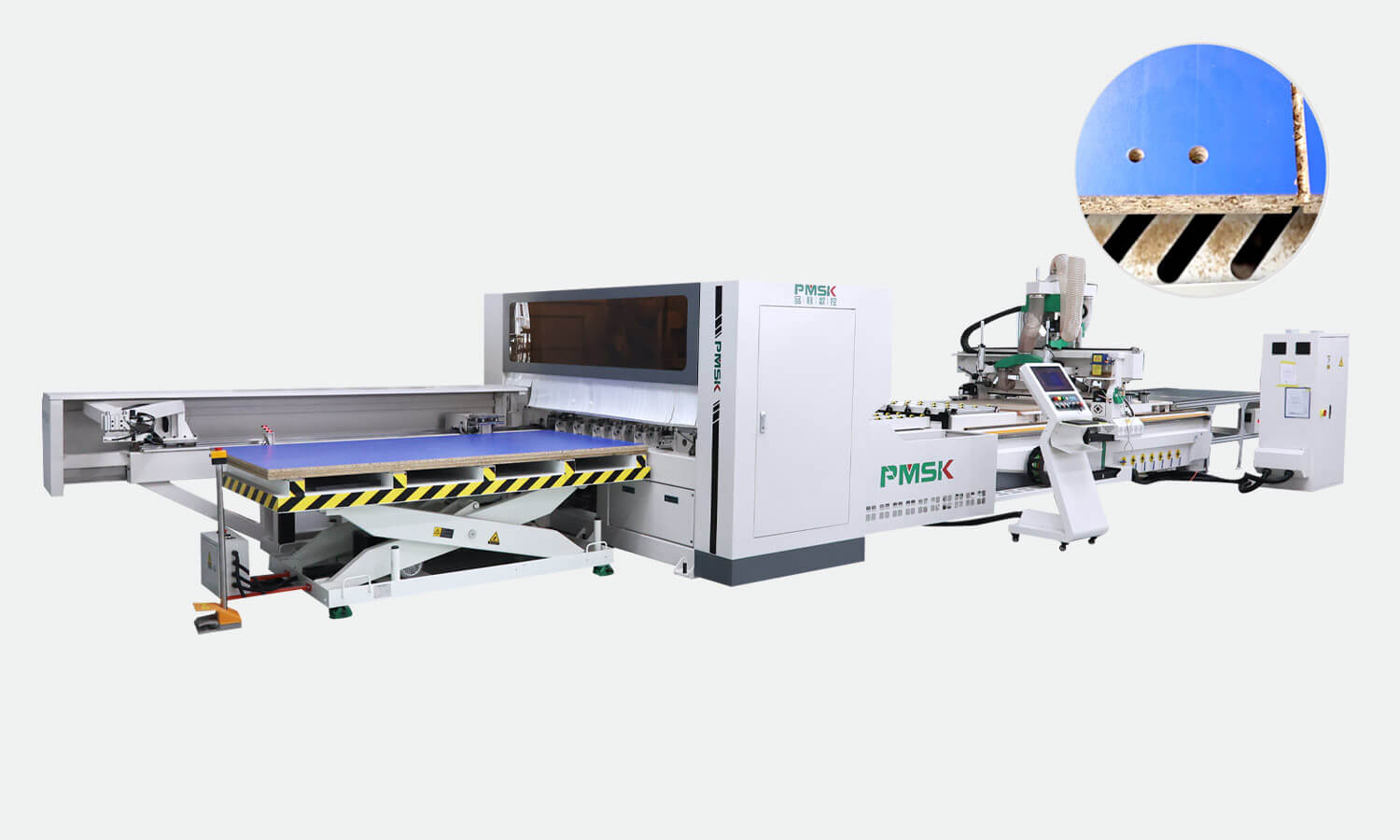

PT5 Nesting Drilling Cutting Machine
Machine One
- ModelPT5
- Working size1220×2800mm
- Drill package(5+4)9V *2
- Spindle6KW×2 9KW×1
- Traveling speed85m/min
- Structure of tableVacuum table
- Total power40Kw
- Dimension17000×2800×2300

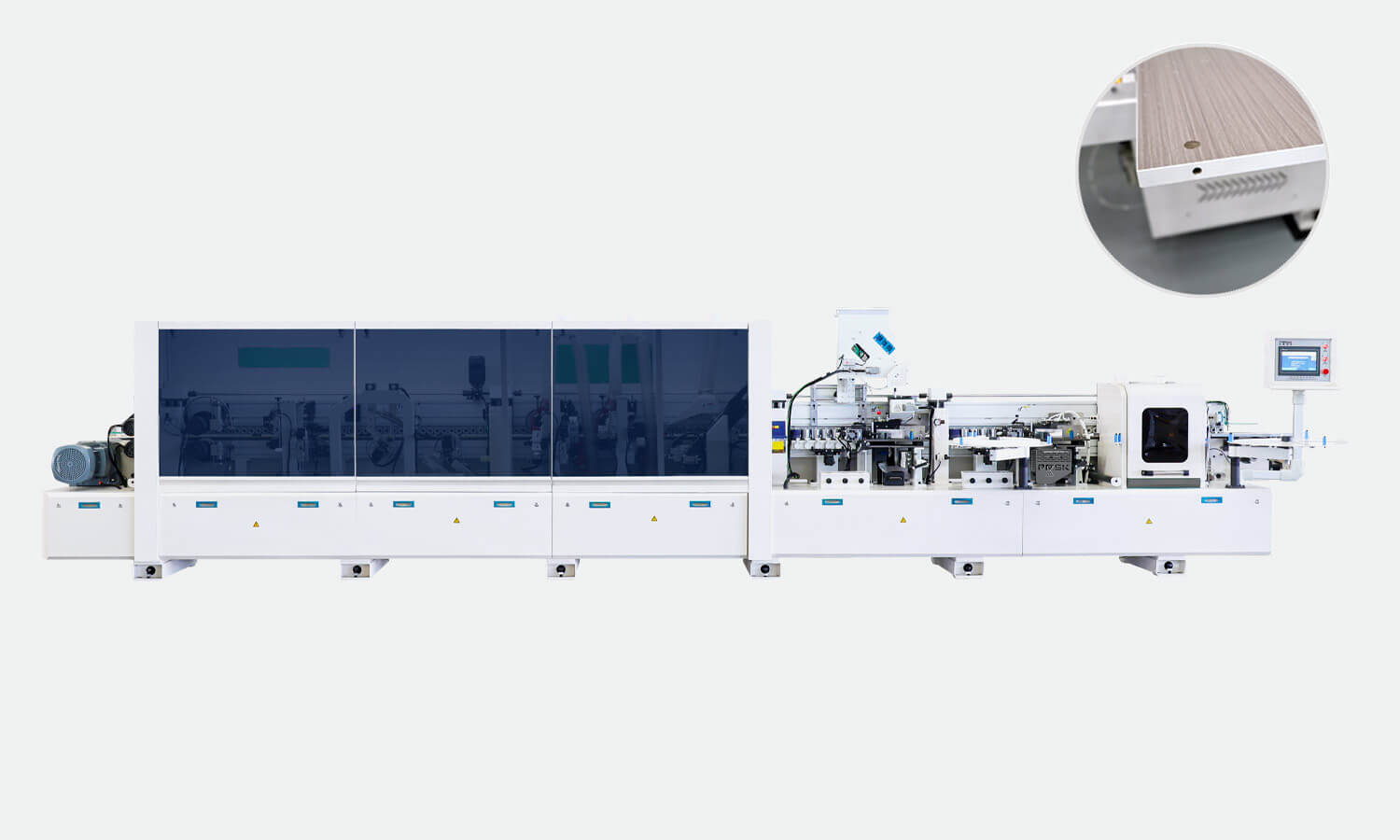

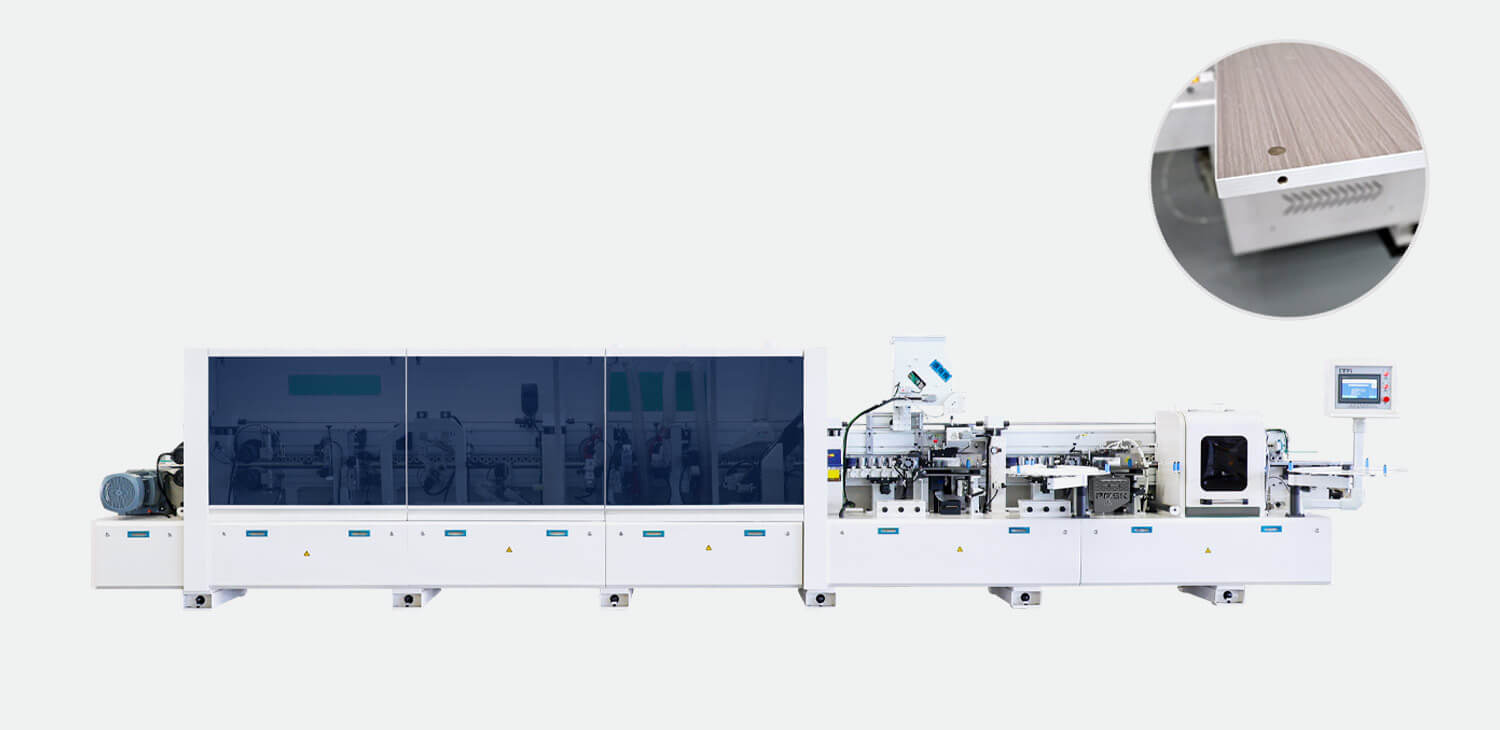

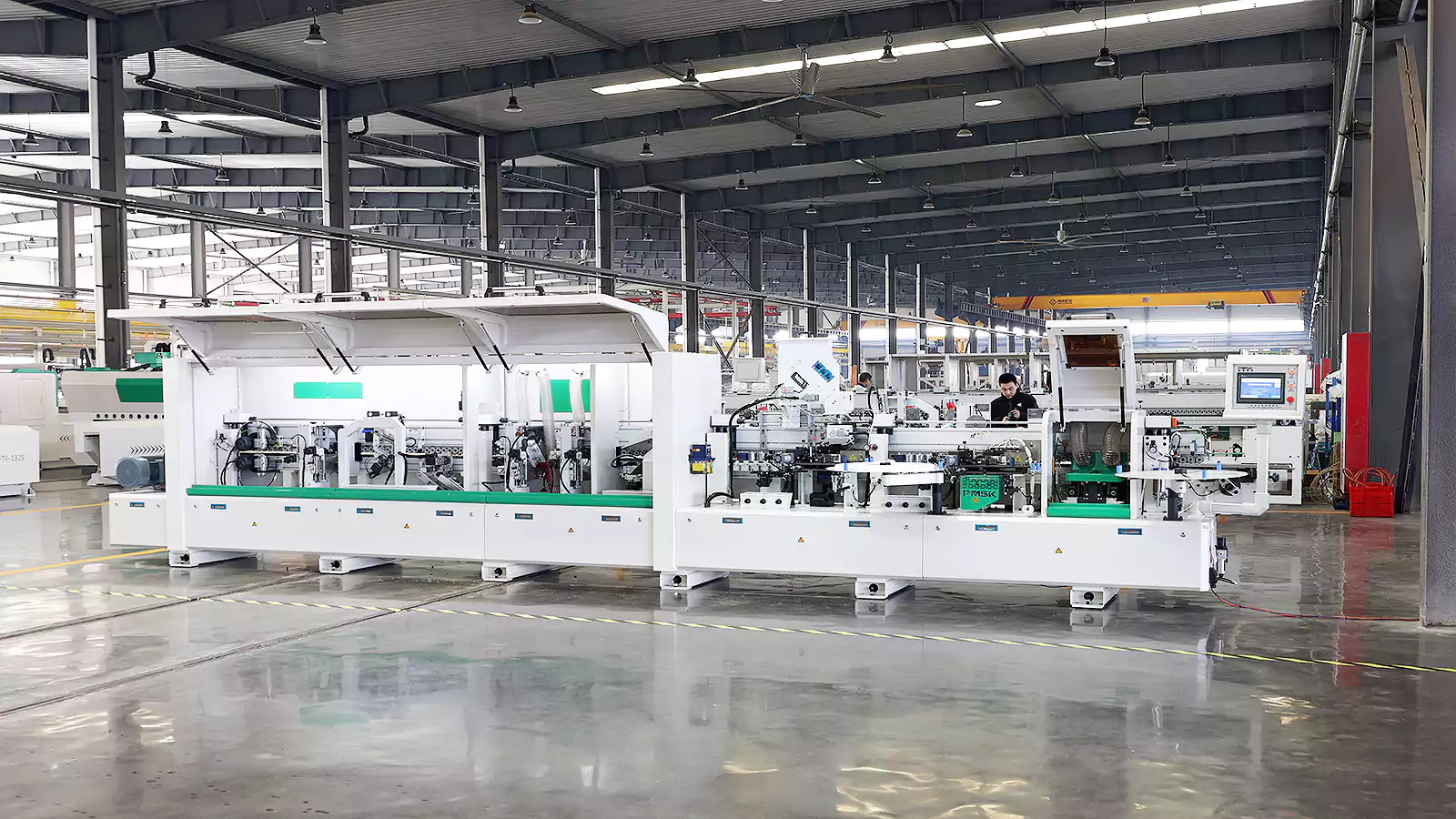

PE-668JC-2S Cnc Side Drill Edge Bander
Machine Two
- ModelPE-668JC-2S
- Edge tape thickness0.4-3mm
- Edge tape width12-65mm
- Panel thickness10-60mm
- Feeding speed0-23m/min
- Air pressure0.7Mpa
- Total power24kw
- Dimension9400×1050×1750mm
