pmsk panel furniture nesting drilling cutting Processing Center

PMSK Panel Furniture Making Machines High-Speed Drilling and Cutting Machine: Efficient, Precise, Intelligent

PT5 Drill Cutting Processing Center

ModelPT5
Working size1220×2800mm
Drill package(5+4)9V *2
Spindle6KW×2 9KW×1
Traveling speed85m/min
Structure of tableVacuum adsorption table
Total power40Kw
Dimension17000×2800×2300mm

How can the furniture manufacturing industry reduce costs and increase efficiency?

As the woodworking industry grows and develops, its processing needs are more abundant. In order to adapt to the market and meet consumers’ needs, PMSK has launched the PT5 series of products with full scene coverage. Among them, the high-speed drilling and cutting machine is an intelligent machine that integrates the functions of plate drilling, slotting, cutting and discharging. The whole machine is composed of three main parts: automatic labeling area, drilling area and cutting and discharging area. When processing, only workers need to place the boards on the labeling lifting platform, and the equipment can complete all processing operations. At the same time, it can be used in conjunction with automatic edge banding machine and side drilling machine to form a completed panel furniture production line.

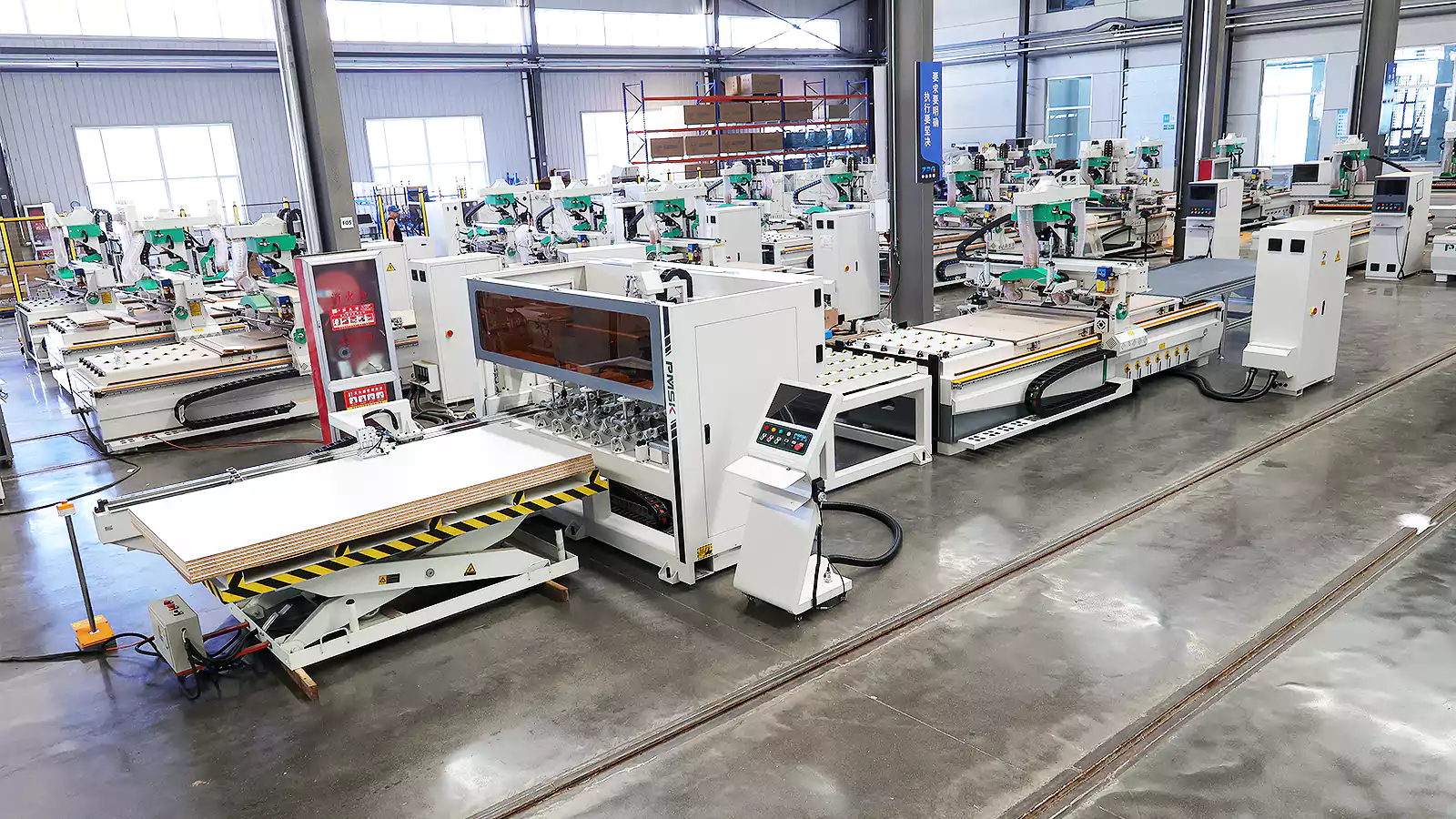

PT5 Drill Cutting Center

Three main features of high-speed drilling and cutting machines

1. High Efficiency: The labeling area, drilling area, and cutting area are processed simultaneously without interruption, resulting in high efficiency and a daily output of 140-160 sheets of board.

2. Precision: Integrated heavy-duty bed structure with strong stability; Multiple processing tasks can be completed with one positioning, with high precision.

3. Intelligence: The overall control system is intelligently controlled, optimizing scheduling and eliminating the need for manual intervention in the production process.

Highlighted features of the drilling and cutting machine

Memory board replenishment: The industry’s first memory board replenishment function, replenishment is simple, improve work efficiency.

Advantages of PMSK high-speed drilling and cutting machine

1. Reduce the production process

Labeling, drilling and cutting are all completed in one machine, eliminating the need to manually transfer to CNC six-sided drilling for punching after traditional sealing, and simplifying the production process.

2. Improve productivity

The production process does not require human intervention and has a high degree of intelligence and automation, which in turn improves production efficiency.

3. Reduce the rate of plate scratching

In the actual production process, it reduces the transmission and handling of the boards, and effectively reduces the scratches of the boards. At the same time, the worktable adopts vacuum adsorption table surface with strong adsorption capacity, which will not cause the problem of running boards.

4. Low failure rate, simple operation

Compared with the traditional automated production line, the operation interface is simple and clear, easier to operate, and the failure rate is lower.

5. Upper and lower drilling at the same time

Compared with similar products on the market, PMSK high-speed drilling and cutting machine in the drilling link for, double-sided drilling center positioning at once, processing speed faster and more efficient.

6. Improve the plate one time qualified rate

Effectively overcome the banana bend caused by the secondary processing problems, to solve the shaped plates, small plates six-sided drilling processing error is too large or can not be processed and other issues.

DA48-2128Cnc Nesting Machine

High-speed drilling and cutting machine configuration details

Heavy-duty integrated bed structure
Master control system
Rotary labeling system
Drilling and slotted front and back
Automatic tool change spindle + tool magazine
High-speed dust-free cutting
Main electrical components: France Schneider or Switzerland ABB
Main pneumatic components: AirTAC
Main switch button: Germany Siemens
Inverter: Hpmont

P5 Nesting CNC Router

In summary, the PMSK high-speed drilling and cutting machine is a highly automated machine with a higher degree of automation and significant advantages in terms of efficiency and precision compared to traditional single-machine operations.
