1. Heavy duty integrated bed: The machine bed adopts thick walled square tube integrated welding, annealing aging treatment, shot blasting treatment, five sided milling processing, and high stability of the bed.

2. Double upper drilling package structure: Double upper drilling package can be processed together, greatly improving the drilling efficiency.

3. Double lower spindle + 9 vertical drilling package: Double lower spindle design can take into account the straightener and other processes.

4. Automatic tool changer spindle + 6 tool magazines: Automatic tool changer spindle with 6 large-capacity tool magazines can solve a variety of invisible parts process, straighteners, light wire slots, hidden door handles and other processes.

5. Floating blowing clamp: Increase the U-shaped clamp to provide strong support and prevent machining accuracy errors caused by debris accumulation.

6. Air floating bead tabletop: Adopting resistant bead tabletop, the surface of the board is not easily scratched during the processing. Strong adsorption capacity, less prone to board running problems.

7. Automatic tool setting device: Equipped with fixed automatic tool setting instrument, it can quickly set the tool after replacing the tool to improve the machining precision and efficiency.

8. Automatic discharge platform: The machine is equipped with an intelligent automatic discharge platform, and the discharge method can be selected from forward and backward discharge.

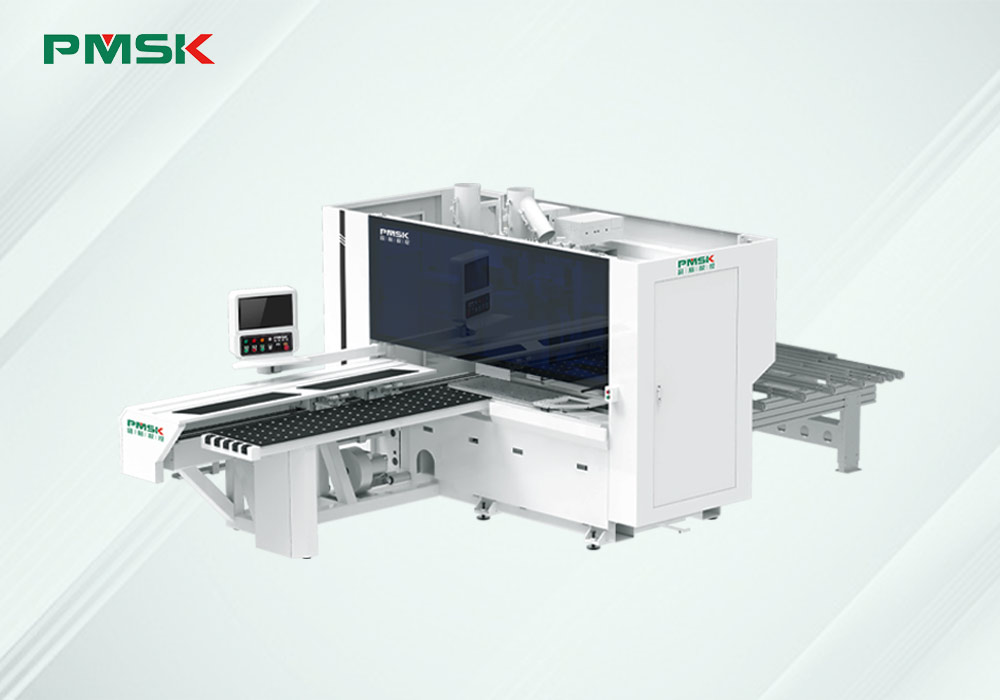

PT6.5 ATC Cnc 6 Side Drilling Machine

---

Key factors to consider:

PMSK six-sided drilling machine with automatic tool changer and double drill package solution process

– Drilling and Slotting

– Milling Ramino Groove

– Stretch Buckle Hole Slot

– Milling Hidden Door Handle

– Milling Lamp Line Channel

– Milling Straightener Slots

– Small Board Processing

– Shaped Cutting

Main configurations of six-sided drilling machine with automatic tool changer and double drill package

– Double upper drill package structure

– Lower drill package + double lower spindle

– Tool changer spindle + 6 tool magazines

– Intelligent control system

– U-shaped blowing clamp

– Air floating bead platform

– Wireless scanner

– Automatic tool setting machine

Single drill package Automatic tool changer

---

To summarize, the six-sided drilling machine with automatic tool changer and double drill package is a major technological innovation in the field of modern woodworking machinery, which integrates the double drill package system, automatic tool change technology and six-sided machining capacity in one, changing the traditional manual drilling and processing. Especially suitable for panel furniture, whole cabinet, wooden door manufacturing and other fields, can efficiently complete the complex and variable drilling needs. In the future, CNC six-sided drilling machine will also develop in the direction of more efficient, more accurate and more intelligent, to help enterprises upgrade and transform.
